Description

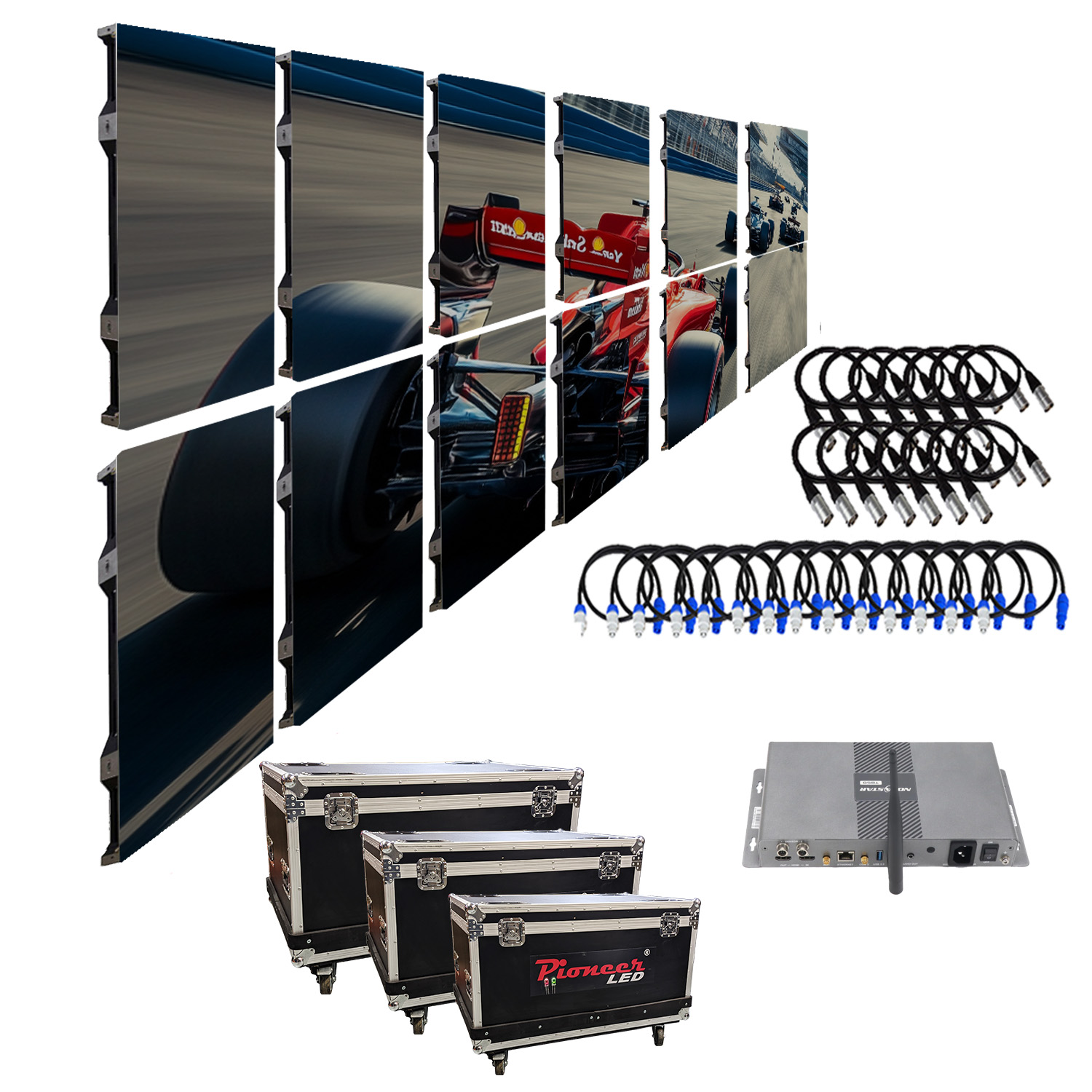

PioneerLED Video Wall P2.91 300x200cm
The PioneerLED P2.91 is an outdoor video wall solution designed for vibrant, high-resolution display in various commercial environments. With a pixel pitch of P2.91, it offers crisp visuals and is well-suited for outdoor signage and event displays.
Each LED module measures 250x250mm, while the cabinet size is 500x1000mm. When assembled, the full screen size comes to 3000x2000mm. The cabinets are crafted from die-casting aluminium, ensuring both high precision and a lightweight build—typically between 27 to 30 kg per square meter.
This video wall features adjustable brightness ranging from 500 to 5500 nits, making it adaptable to various lighting conditions, from indoor ambient settings to bright outdoor environments.
Key Features:
-
Easy service and maintenance (front and back)
-
Full-colour display using Nationstar SMD LEDs
-
High-quality power supply components
-
Fast locks and secure power connectors for efficient setup and stability
Multimedia Player – NovaStar Taurus TB60
Included is the NovaStar Taurus TB60, a cloud-based media player and sender box that functions as both an LED processor and multimedia player. It supports LED screens with up to 2.3 milion pixels, making it perfect for medium-scale displays used in shops, shopping centres, hotels, and cinemas.
Thanks to its cloud control capabilities, the TB60 allows you to manage content from a PC, laptop, smartphone, or tablet, offering true flexibility. Control is available via Wi-Fi, Ethernet, and optionally through a 4G network (4G module not included as standard).
Technical Specifications:
-
Ports: 4 Gigabit Ethernet ports with a processing capacity of up to 650,000 pixels per port (maximum width/height: 4096 pixels)
-
Connectivity: WLAN (stand-alone or access point mode), optional 4G module
-
Audio & USB: Stereo audio output, 1x USB 3.0 (Type A)
-
Performance: Quad-Core ARM A55 1.8GHz processor, 1GB RAM, 16GB internal storage
-
Sensor Ports: Supports 2 sensor inputs
-
Software Compatibility: Configurable via LAN/WLAN using ViPlex Express & NovaLCT
-
Sync Playback: Supported across multiple devices via NTP or GPS (4G required)
Certifications: CE, RoHS, FCC, IC, FCC ID, IC ID, UKCA
Power Supply: AC-100-240V, 50/60Hz
Power Consumption: 18W
Dimensions: 274.3mm x 139.0mm x 40.0mm
Weight: 1.23kg
Flight Case
To ensure safe transport and storage of the LED wall cabinets, a durable flight cases are included.
-
Black finish with hinged lid
-
Equipped with wheels for easy mobility
-
Features two butterfly latches for secure closure
Wiring Kit
All necessary cables are provided for quick setup:
-
Power connection cables
-
Signal connection cables
-
Main power cable (4m)
-
Main signal cable (10m)
-
Media player wiring
Included Software
The following software tools are included to manage and configure your display:
-
ViPlex Express
-
NovaLCT
-
ViPlex Handy
We also offer a wide range of additional services and customisation options to suit your specific needs. Whether you’re looking for different pixel pitches, custom-built structures, hanging bars for suspended installations, or a complete setup with professional installation, we’ve got you covered. Get in touch with us to discuss your project, and we’ll help you find the most suitable and cost-effective solution tailored to your goals.
